SHIMANO DEORE - 2-PIECE CRANKSET - Chain Line 52 mm - 1x12-speedThe SHIMANO DEORE FC-M6100-1 crank features an entirely new construction, using direct mount chainrings, special gear tooth profile for improved chain retention, and a 172 mm Q-factor that is compatible with 142 mm or 148 mm O.L.D. frames.

Superior chain retention for smoother riding even over rough terrainDYNAMIC CHAIN ENGAGEMENT+ improves chain engagement and retentionDirect mount chainring

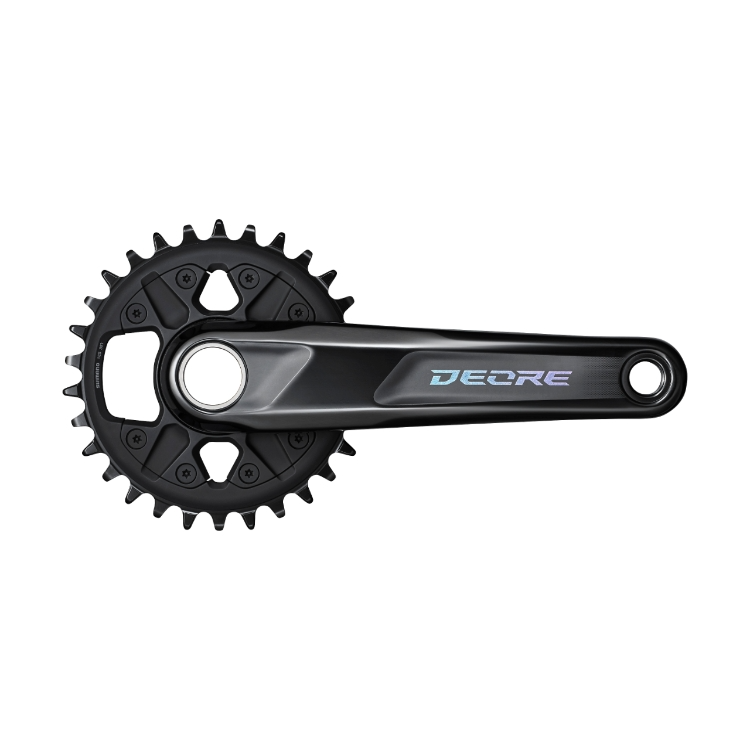

                                                        Shimano Deore M6100 Crank

                                                        • MODEL NO _ FC-M6100-1
                                                          SERIES _ DEORE M6100 Series
                                                          Color _ Series color
                                                          Rear speeds _ 12
                                                          Compatible chain _ HG 12-speed
                                                          Chain line (mm) _ 52
                                                          O.L.D.|Thru (mm) _ 142, 148
                                                          O.L.D.|QR/Nut (mm) _ 135, 141
                                                          P.C.D. (mm) _ Direct
                                                          Spider/gear arms _ 4
                                                          Chainring combination _ 30T, 32T
                                                          Q-factor (mm) _ 172
                                                          Crank arm length (mm)|165 _ ✔
                                                          Crank arm length (mm)|170 _ ✔
                                                          Crank arm length (mm)|175 _ ✔
                                                          Optional chain guard|Without chain/bash guard _ ✔
                                                          2-PIECE CRANKSET _ ✔
                                                          Compatible bottom bracket type|Outboard _ ✔
                                                          Recommended bottom bracket|Threaded (normal) _ BB-MT501
                                                          Recommended bottom bracket|Press-Fit _ BB-MT500-PA
                                                          Threaded bottom bracket shell width (mm)|68 _ ✔
                                                          Threaded bottom bracket shell width (mm)|73 _ ✔
                                                          Crank fixing screw included _ ✔
